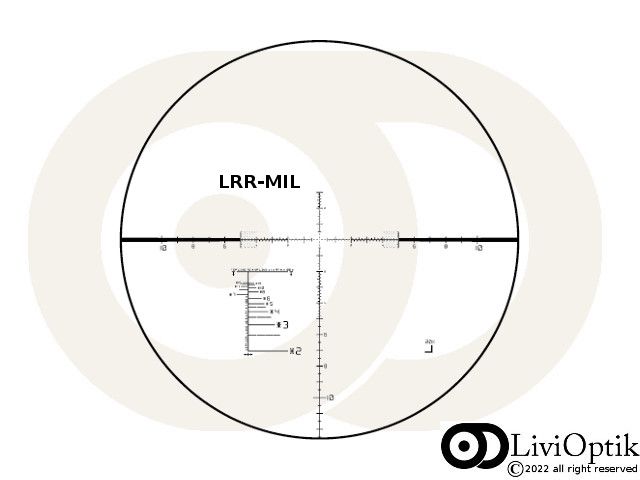

5-45x56 High Power LP | CW | DT27-ST | LRR-MIL Reticle
[Code: 666.41C.G9E9]
Developed for the toughest long-range conditions the 5-45x56 PM II High Power uses the best optics in a solid and rugged riflescope design. Having an outstanding optical performance over the entire magnification range, it is perfect for identifying even small targets or spotting your results. In addition it can be equipped with our Multi Turn II (MT II) turret with fine 0.5 cm/100 m click value for precise zeroing and more accurate shooting. This is why it has become more popular among ambitious competition shooters and military units alike.
| Magnification |
5–45
|
||
| Exit pupil-Ø (mm) |
8,8–1,2
|
||
| Field-of-view (m/100 m) |
7,8–0,9
|
||
| Length (mm) |
434
|
||
| Weight (g) |
1130
|
||
| Mount system |
Ring mount
|
||
| Main tube-Ø (mm) |
34
|
||
| Parallax adjustment (m) |
30 to ∞
|
||
| Reticles |
P4FL, MSR2, LRR-MIL, GR2ID, TREMOR3
|
||
| Focal Plane |
1
|
||
| Illumination |
11 settings
|
||
| Turrets (Elevation /Windage) |
DT27
MTC LT /
ST ZC CT
|
DT II+
MTC LT /
ST II ZC LT
|
MT II
MTC LT /
DT II+ ZC LT
|
| Turret rotation |
cw/ccw
|
||
| Click value |
0.1 MRAD
|
0.1 MRAD
|
0.5 cm/100 m
|
| Adjustment range elevation |
27 MRAD
|
27 MRAD
|
295 cm/100 m
|
| Adjustment range windage |
± 6 MRAD
|
± 6 MRAD
|
± 65 cm/100 m
|
| Internal travel elevation |
29,6 MRAD
|
32,1 MRAD
|
321 cm/100 m
|
| Internal travel windage |
21,1 MRAD
|
14,7 MRAD
|
147 cm/100 m
|
