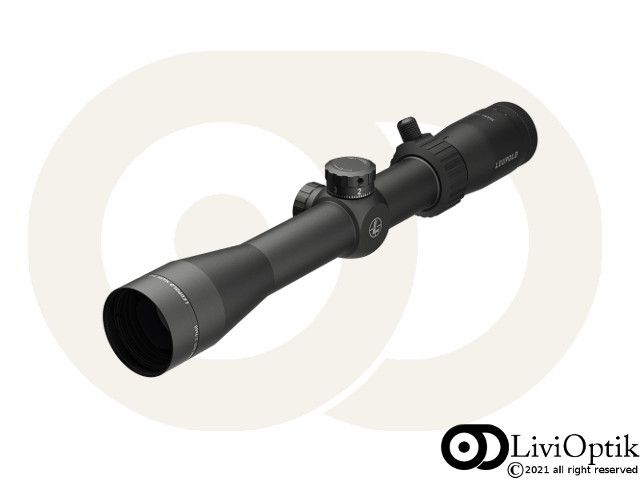

Mark 3HD | 3-9x40 | P5 | MilDot
[Code: 13635]
The Mark 3HD™ was built for any shooter who needs a rugged, precise, and repeatable MIL-based scope for their rifle. With one of the most popular magnification ranges out there, the 3-9x40mm model makes short work of almost any shot while the 30mm maintube gives you ample adjustment when you need it.
| Finish |
Matte
|
| Reticle Focal Plane |
Second Focal Plane
|
| Elevation Adjustment Type |
P5
|
| Zero Stop |
Yes
|
| Rezero Type |
Set Screw
|
| Windage Adjustment Type |
Capped
|
| Reticle Type |
Second Focal Plane
|
| Reticle |
Mil Dot
|
| Light Management System |
Elite Optical System
|
| Magnification Type |
Variable
|
| Illuminated |
No
|
| Nightvision Compatible Illumination |
No
|
| Daylight Bright Illumination |
No
|
| Weight (oz) |
15
|
| Elevation Adjustment Value per Click |
0.1Mil
|
| Elevation Adjustment Range (MOA) |
52
|
| Elevation Adjustment Range (MIL) |
15
|
| Elevation Adjustment Range (cm @ 100m) |
150
|
| Elevation Adjustment Per Revolution |
6 MIL
|
| Elevation Dial Travel Limit |
5.6MIL
|
| Windage Adjustment Value per Click |
0.1Mil
|
| Windage Adjustment Range (MOA) |
52
|
| Windage Adjustment Range (MIL) |
15
|
| Windage Adjustment Range (cm @ 100m) |
150
|
| Windage Adjustment Per Revolution |
5 MIL
|
| Magnification Max |
9
|
| Magnification Min |
3
|
| Objective Lens Diameter (mm) |
40
|
| Linear FOV Low Mag (ft@100yds) |
33.7
|
| Linear FOV High Mag (ft@100yds) |
13.6
|
| Eye Relief Low Mag (in) |
4.2
|
| Eye Relief High Mag (in) |
3.7
|
| Fixed Parallax-Free Distance (yd) |
150
|
