QRF-4500S-BC | FDE Color | NSN: 1240-20-014-8145
[Code: LFB1550GNFDE]

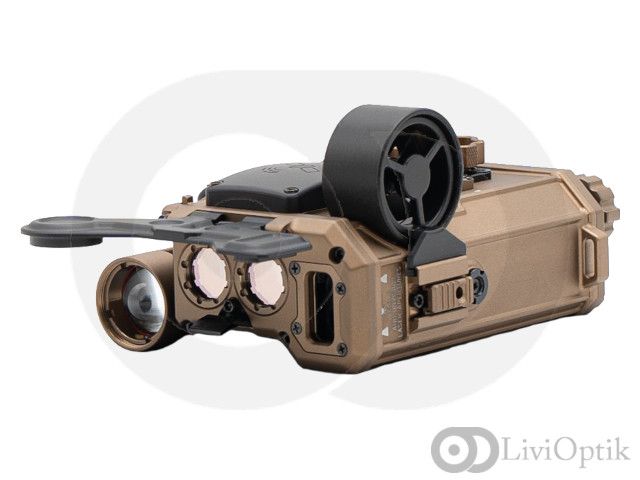

The QRF-4500S™-BC is a compact, all-in-one 1550nm rapid targeting and ranging module with GPS, compass, IR/visible laser pointer, and IR illuminator. Built for reconnaissance, surveillance, and precision engagement, it can be paired with weapons and optical systems, including high-caliber .50 BMG rifles. Its rugged aluminum housing ensures durability exceeding IP67 rating and shock resistance. Compatible via direct integration with day, night, thermal, and fusion devices, it provides continuous measurements and ground target designation. Featuring GSCI’s 9-axis HUD, proprietary ballistic calculator, target locator and weather station, it enhances first-shot accuracy and
provides necessary follow-up shot correction.
GPS Receiver
Target Locator and Ballistic Calculator
Laser Rangefinder: Transmitter
Laser Rangefinder: Receiver
Visible Aiming Laser
IR Aiming Laser
IR Illuminator
OLED Display
Wind Impeller / Anemometer
|
-Built-in Ballistic Calculator and Weather Station
-Hand-held, Optical, and Weapon Mountable Applications
-Can Be Paired with Various Optical-Electronic Systems
-1550nm LRF Wavelength
-4.5km (2.8mi) Maximum Ranging Capability
-Rapid and Continuous Accurate Measurements
-128 x 64 OLED Display with Adjustable Brightness
-Integral Iron Sights for Hand-Held Aiming and Ranging
-Synchronized Compass and GPS
|
-Provides Real-Time Positioning Information for Both User and the Target -3 Memory Slots for Target Measurements -Measures Distance Between Two Targets -Measures Speed and Heading Direction -20 Programmable Ballistic Profiles -Co-Aligned Adjustable IR Laser + Red or Green Visible Laser and Focusable IR Illuminator -Compact and Rugged All-Aluminum Housing -Mounts on STANAG 4694 / MIL-STD-1913D Picatinny rails -Wired Remote Control |
Ask information about QRF-4500S-BC | FDE Color | NSN: 1240-20-014-8145
