LAM-4G | Visible and I/R | 1000m
[Code: NC.4G]

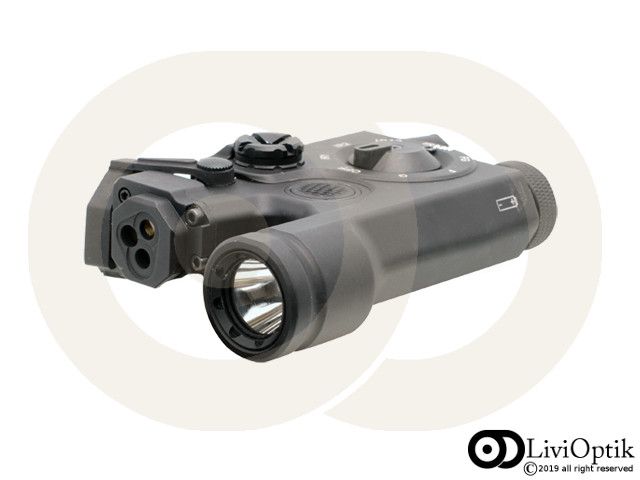

The LAM 4G is an all-in-one aiming and illumination system for rifles and machine guns. A 4-channel device, the LAM 4G includes a visible green laser and LED flashlight, IR aiming laser and IR illuminator.
| Visible Laser Aimer |
|
| Eye safety |
IIIb
|
| Distance, day, low/high (m) |
150 / 500
|
| Beam divergence, FWHM (mrad) |
1.2
|
| Spot size @ 100m (mm) |
60
|
| Wavelength (nm) |
530 ±20
|
| Laser colour |
Green
|
| Infrared Laser Aimer |
|
| Eye safety |
IIIb
|
| Distance, low / high (m) |
1,000
|
| Beam divergence, FWHM (mrad) |
1.2
|
| Wavelength (nm) |
830 ±20
|
| Flashlight |
|
| Bulb |
CREE, V6HD
|
| Light output (lumens) |
300
|
|
Infrared Laser Illuminator
|
|
| Eye safety |
IIIb
|
| Distance, low / high (m) |
200 / 2,000
|
| Beam divergence, FWHM (mrad) |
1.3 – 60
|
| Wavelength (nm) |
830 ±20
|
| Ballistics |
|
| Windage adjustment step (mrad) |
0.5
|
| Elevation adjustment step (mrad) |
0.5
|
| Retention after 1,000 shots (mrad) |
1
|
|
Mechanics, Electronics & Environmental
|
|
| Dimensions (mm) |
116x90x34
|
| Weight without batteries (g) |
285
|
| Shock resistance (G) |
300
|
| Quick release |
Yes
|
| Battery type |
CR 123
|
| Battery life, high / low (hours) |
8 / 16
|
| Operating temperature range (°C) |
-40 to +60
|
| Waterproofing |
IP67
|
WARNING! These laser module emits radiations that is invisible and harmful to human eye.
Ask information about LAM-4G | Visible and I/R | 1000m
